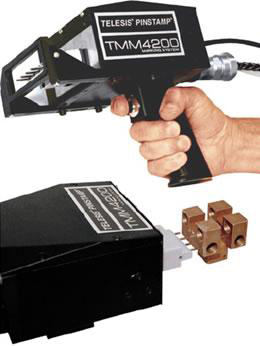

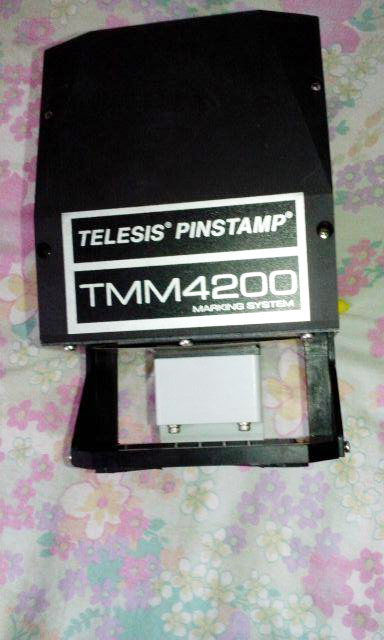

With up to 4 pins, this unit provides high-speed marking to achieve increased throughput in online applications or to reduce fatigue and mis-marking in handheld applications.

Features

• Compact, ergonomic design
• Weighs 4.5 pounds (2.0kg)
• Available with four 25S or two 150SA marking pins
• Marks up to eight 0.125" (3mm) high Characters- Per-second
• Marking windows up to 0.5" x 2" (13mm x 50mm)
• Depths up to 0.013" (0.33mm) in mild steel
• Rugged rack-and-pinion X/Y platform for low maintenance operation
• Simple shutter plate protects head from solid and liquid contaminants
• Detachable electronics cable for improved serviceability
• Self-contained, state-of-the-art TMC470 controller features two serial ports, USB and Ethernet ports
• Also available without handle and stand-off for fixtured applications
• Automatically generates serial numbers, date, time and shift codes
• Stores up to 400 marking patterns
• Easily interfaced to PLCs (Programmable Logic Controllers) and host computers
