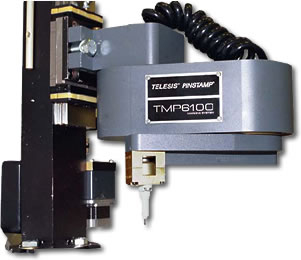

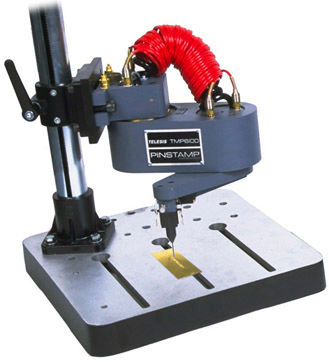

Unparalleled flexibility with a 304 x 152mm (12 x 6") window. Ideal for marking a wide range of components or for batch processing. Features an open robotic design that makes part loading and positioning easy

Features

• Large 6" x 12" (152mm x 304mm) marking window
• Unique rigid positioning drive features robotic technology
• Marks a wide range of materials from soft plastics to hardened steel - up to Rc60
• Dot density up to 200 dots-per-inch (79 dots-per-centimeter)
• Choice of interchangeable marking pin types for depths from 0.001" - 0.018" (0.02mm - 0.45mm)
• Pin travel accommodates surface irregularities to 0.25" (6mm)
• Compact, self-contained TMC470 Controller with integral display and keyboard - no PC required
• RS232 or TCP/IP Host interface to download text to individual fields or call up entire patterns
• Automatically generates serial numbers, time, date and shift codes
• Easily interfaced to PLCs (Programmable Logic Controllers)
• Pattern backup via USB port
• Stores up to 200 marking patterns (files)
