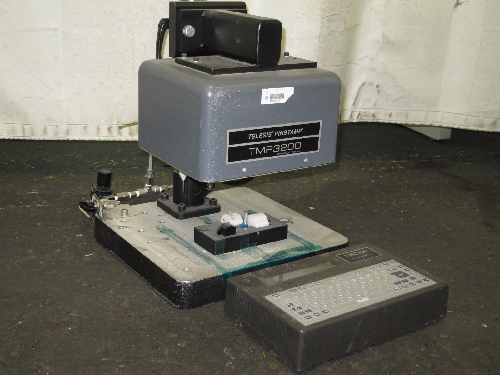

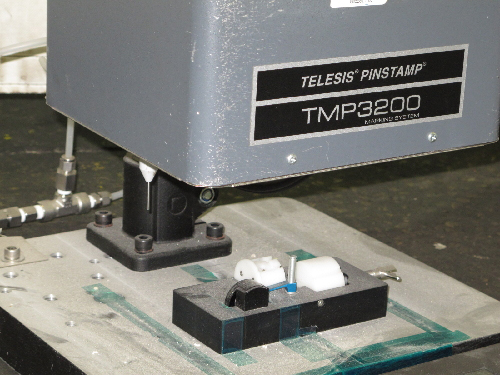

The PINSTAMP TMP3200/470 Single Pin Marking System features a large 4" x 6" (100mm x 150mm) marking window, and marking speeds up to six characters-per-second. Well suited for both bench top and factory-automated applications, its simple, yet robust belt-driven dual rail, X/Y platform yields high quality characters and low maintenance operation.

Features

• 4" x 6" (100mm x 150mm) marking window
• Belt-driven, dual rail X/Y mechanism with superior wear characteristics
• Patented floating pin technology accommo-dates surface irregularities of up to 0.25 ? (6mm)
• Marks a wide range of materials from soft plastics to hardened steel - up to Rc60
• Choice of pin sizes for marking depths from 0.001? - 0.018? (0.03 mm - 0.45 mm)
• Self-contained, state-of-the-art TMC470 controller features two serial ports, USB port and Ethernet port
• Automatically generates serial numbers, date, time and shift codes
• Stores up to 400 marking patterns
• Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers
• Dot density up to 200 dots-per-inch (79 dots-per-centimeter)
